[NEW] JDM HONDA ZR-V RZ3 2023 Wiring Harness (1) GENUINE OEM

Fitting Model :

HONDA ZR-V RZ3

Model Year :

2023

Grade :

Z

Parts Information :

Wiring Harness (1)

No
Parts Number
Parts Name
Required
QTY
1
 32132-SM4-003 Band, Wire Harness Offset (20) (Black) (122.5MM)
1
2

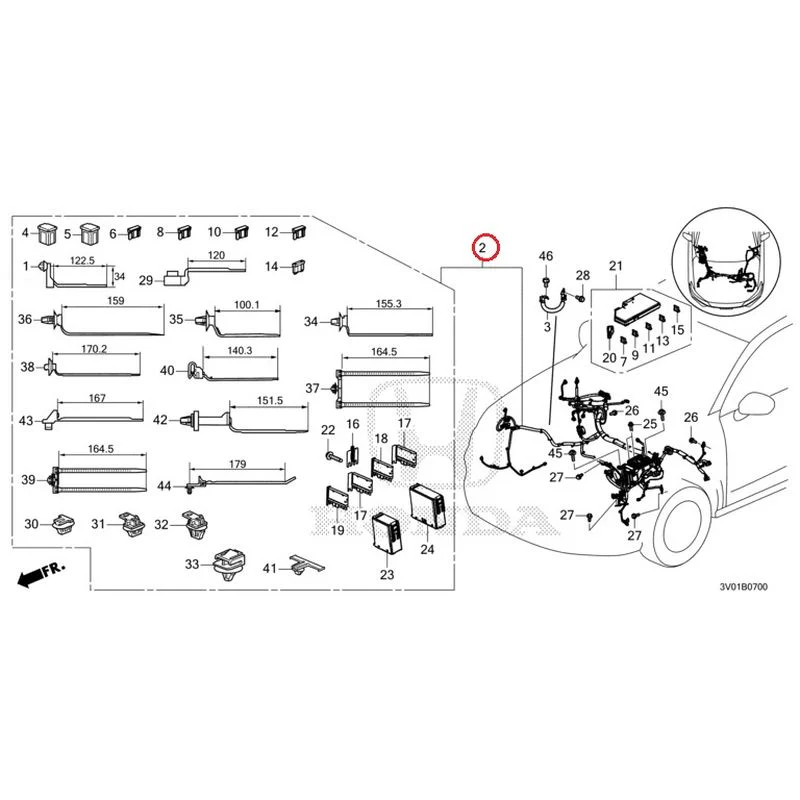

 32200-3V0-J20 harness, engine room wire
1
3
 32610-3V0-H00 Cable ASSY., sub-ground
1
4
 38211-TTA-J01 FUSE, MULTIBLOCK (30A)
1
5
 38211-TTA-J11 FUSE, MULTIBLOCK (40A)
1
6
 38221-SNA-A31 Fuse, blade (7.5A)
2
7
 38221-SNA-A31 Fuse, blade (7.5A)
1
8
 38221-SNA-A41 Fuse, blade (10A)
8
9
 38221-SNA-A41 Fuse, blade (10A)
1
10
 38221-SNA-A51 Fuse, blade (15A)
9
11
 38221-SNA-A51 Fuse, blade (15A)
1
12
 38221-SNA-A61 Fuse, blade (20A)
5
13
 38221-SNA-A61 Fuse, blade (20A)
1
14
 38221-SNA-A81 Fuse, blade (30A)
1
15
 38221-SNA-A81 Fuse, blade (30A)
1
16
 38230-T20-A01 FUSE, MAIN (125A)
1
17
 38231-T20-A01 FUSE, MULTI-BLOCK (A)
2
18
 38232-T20-A01 FUSE, MULTI-BLOCK (B)
1
19
 38232-T20-A11 FUSE, MULTI-BLOCK (B)
1
20
 38235-TA0-A01 Puller, fuse
1
21
 38256-3V0-X01 BOX ASSY., RELAY UPPER
1
22
 38259-TYA-A00 BOLT, MAIN FUSE (M5X27)
2
23
 38280-T20-A01 Module assembly, relay
1
24
 38850-3V0-J01 module, semiconductor
1
25
 90114-STX-A00 bolt 6X21
2
26
 90148-SE0-003 Ground Bolt 6X16 (Washer 12.5MM) (ZN)
2
27
 90149-SE0-003 Bolt, earth 6X16
3
28
 90149-SE0-003 Bolt, earth 6X16
1
29
 91531-S5B-003 Band, harness (black) (120MM)
1
30
 91534-SWA-003 Coupler Clip (Dark Gray)
1
31
 91535-STK-003 Coupler clip
1
32
 91535-TA0-003 Clip, coupler (dark brown)
4
33
 91537-TBA-003 Clip, protector (black)
2
34
 91540-STK-003 Clip, harness band (black) (155.3MM)
1
35
 91540-TA0-003 Harness Band Clip (Natural) (100.1MM)
3
36
 91540-TAA-003 Clip, Harness Band (Black) (159MM)
20
37
 91547-T2A-003 Clip, band harness (40) (Black) (164.5MM)
5
38
 91548-TBA-003 Clip, harness band (black) (170.2MM)
6
40
 91549-TA0-003 Clip, Harness Band (Black) (140.3MM)
2
41
 91552-TR0-003 Clip, offset (20) (natural)
1
42
 91558-SAA-003 Clip, harness band (30) (Black) (151.5MM)
1
43
 91559-S47-003 Clip, harness band (natural) (167MM)
1
44
 91559-T2A-003 Clip, band harness (OFFSET) (20) (Black)
1
45
 93405-06025-08 Bolt washer 6X25
2
46
 95701-06012-08 Bolt, Flange 6X12
1

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.

NHP003443
