[NEW] JDM HONDA VEZEL e:HEV RV5 2021 Wiring Harness (1) GENUINE OEM

Fitting Model :

HONDA VEZEL e:HEV RV5

Model Year :

2021

Grade :

PLAY

Parts Information :

Wiring Harness (1)

No
Parts Number
Parts Name
Required
QTY
1
 32132-T6L-003 cap, waterproof coupler
1
2
 32200-3N0-900 Harness, engine compartment wire (including washer tube & cable)
1
2
 32200-3N0-J70 Harness, engine compartment wire (including washer tube & cable)
1
3
 32413-TZB-003 terminal, battery plus
1
4
 32415-SMG-E01 Nut (M6)
1
5
 32416-SMG-E01 BOLT, SQUARE (M6)
1
6
 32419-TZB-003 Terminal, Battery (PLUS)
1
7
 32601-3N0-J00 CABLE ASSY., MISSION EARTH
1
8
 32610-3N0-J00 Cable ASSY., sub-ground
1
9
 38211-SNA-A11 Fuse, block (30A)
2
10
 38211-SNA-A21 Fuse, block (40A)
2
11
 38211-TTA-J01 FUSE, MULTIBLOCK (30A)
6
12
 38211-TTA-J11 FUSE, MULTIBLOCK (40A)
3
13
 38216-T02-003 BOX ASSY., FUSE SUB COVER (LA)
1
14
 38221-SNA-A31 Fuse, blade (7.5A)
3
15
 38221-SNA-A41 Fuse, blade (10A)
N
16
 38221-SNA-A51 Fuse, blade (15A)
10
17
 38221-SNA-A61 Fuse, blade (20A)
N
18
 38221-SNA-A81 Fuse, blade (30A)
2
19
 38227-T02-003 FUSE, BLOCK (60A) (L3 TYPE)
1
20
 38235-TA0-A01 Puller, fuse
1
21
 38240-TZB-003 Terminal ASSY., Battery fuse
1
22
 38251-TR0-A01 Bolt 5X20
2
23
 38253-3N0-Z01 cover, relay box upper
1
24
 38254-T5A-003 COVER, RELAY BLOCK UPPER (8P)
1
25
 90115-TF0-003 bolt, special 6X33
1
26
 90148-SE0-003 Ground Bolt 6X16 (Washer 12.5MM) (ZN)
3
27
 90149-SE0-003 Bolt, earth 6X16
3
28
 90149-SE0-003 Bolt, earth 6X16
2
29
 90301-SP0-003 Nut, Paint Cutting 6MM
2
30
 90336-T5A-003 NUT, FLANGE 8MM
1
31
 90336-T5A-003 NUT, FLANGE 8MM
1
32
 90336-T7A-000 NUT, FLANGE 8MM
1
33
 90337-SJ4-003 Nut, A.L.B.
5
34
 90361-SV4-003 Nut, Paint Cutting 6MM
2
35
 91531-SDA-003 Clip, harness band (Natural) (145MM)
1
36
 91531-SR3-003 HOLDER, COUPLER (NATURAL) (128.6MM)
1
37
 91531-T4N-003 Clip, Wire Harness (Black) (44MM)
1
38
 91533-STK-003 Coupler Clip (Natural)
1
39
 91534-SWA-003 Coupler Clip (Dark Gray)
3
40
 91535-STK-003 Coupler clip
2
41
 91535-TA0-003 Clip, coupler (dark brown)
N
42
 91536-STK-003 Clip, relay holder (natural)
1
43
 91540-STK-003 Clip, harness band (black) (155.3MM)
9
44
 91540-TA0-003 Harness Band Clip (Natural) (100.1MM)
2
45
 91540-TAA-003 Clip, Harness Band (Black) (159MM)
N
46
 91542-SWY-003 Clip, harness band (black) (158.9MM)
1
47
 91542-TF0-003 Band, harness offset (20) (dark blue) (145MM)
1
48
 91547-T2A-003 Clip, band harness (40) (Black) (164.5MM)
9
49
 91548-T2A-003 Clip, band harness (18) (Black) (101.5MM)
4
50

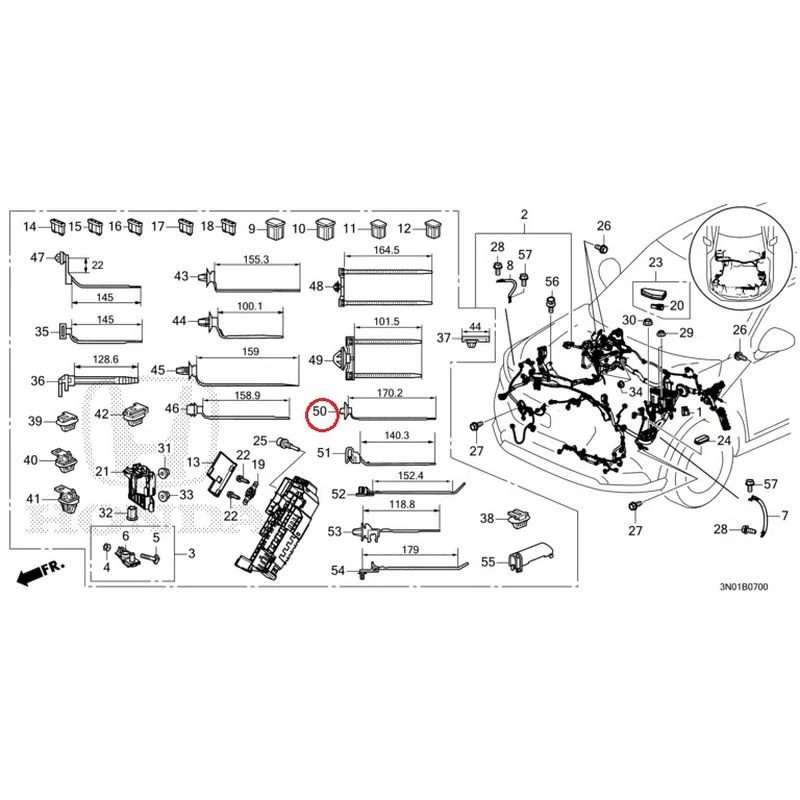

 91548-TBA-003 Clip, harness band (black) (170.2MM)
1
51
 91549-TA0-003 Clip, Harness Band (Black) (140.3MM)
3
52
 91549-TTA-003 CLIP, BAND HARNESS (BLACK) (152.4MM)
2
53
 91556-TBA-003 CLIP, HARNESS & CABLE BAND (BLACK) (118.8MM)
1
54
 91559-T2A-003 Clip, band harness (OFFSET) (20) (Black)
5
55
 91776-T2A-A01 Cover, lifter lever
1
56
 93401-06016-08 Bolt washer
1
57

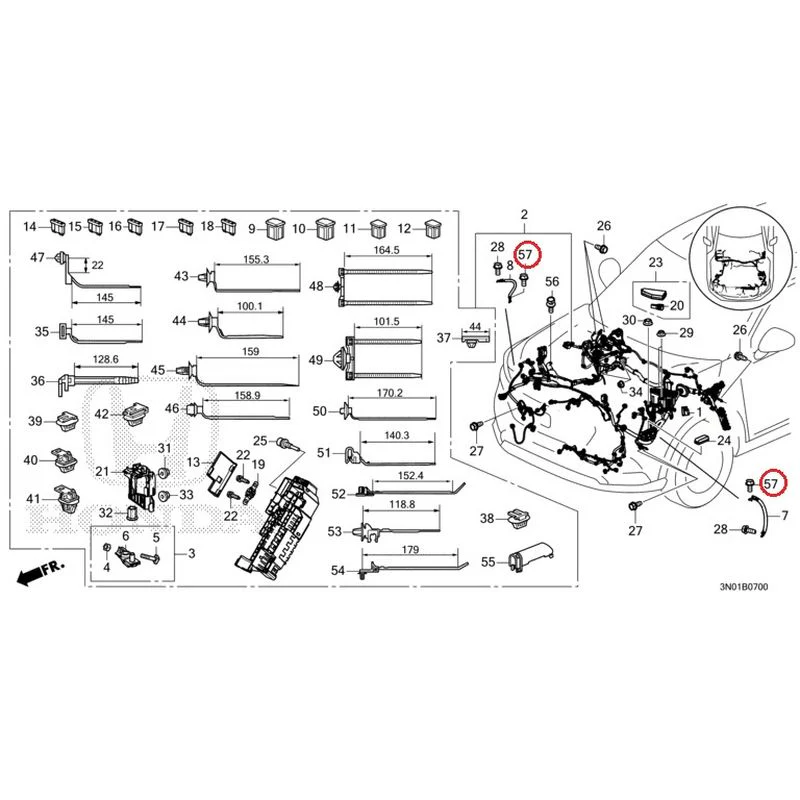

 95701-06012-08 Bolt, Flange 6X12
2

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.
